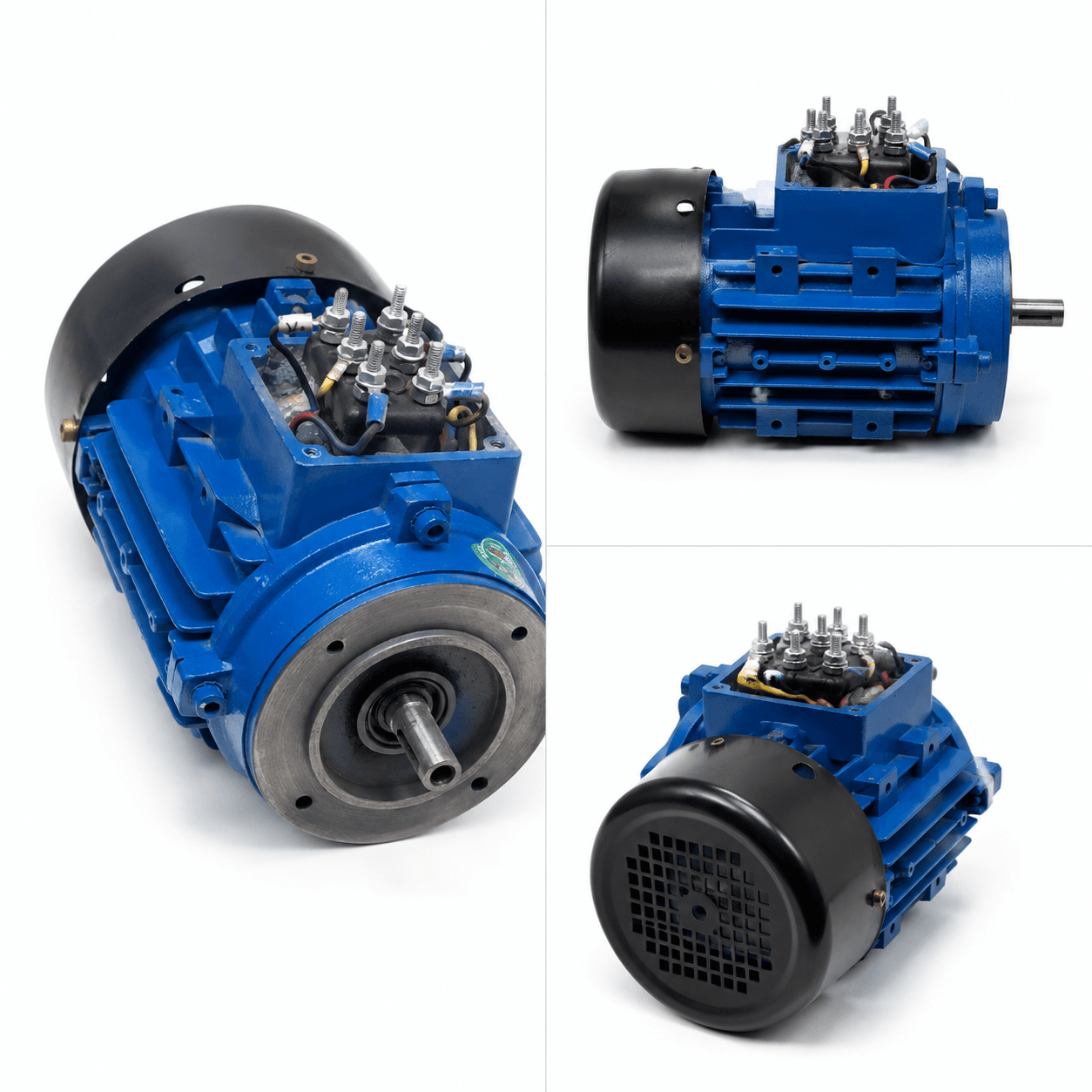

3-Phase AC Induction Motor 180W-200W (0.18-0.20kW) – Model DM183 (220V-400V)

The DM183 is a robust, high-efficiency 3-phase induction motor designed for continuous industrial duty (S1). With a power rating of 180W to 200W, this motor is perfect for small conveyors, fans, pumps, and light-duty industrial machinery. Its multi-voltage design supports both 220V (Delta) and 400V (Star) connections, making it compatible with various industrial power grids. Built with a durable aluminum or cast-iron frame and featuring a TEFC (Totally Enclosed Fan Cooled) design, the DM183 ensures reliable performance in dusty or humid workshop environments.

Technical Specifications (For Table)

• Model: DM183

• Phase: 3-Phase AC

• Rated Power: 0.18kW – 0.20kW (180W – 200W)

• Voltage Range: 220V – 240V (Delta) / 380V – 415V (Star)

• Frequency: 50Hz / 60Hz (Dual Frequency)

• Rated Speed: 1340 – 1620 RPM (4-Pole Motor)

• Duty Cycle: S1 (Continuous Operation)

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Insulation Class: Class F

• Protection Rating: IP54 / IP55
