Voltage: 8 ~ 24V
Load: 4A (Max.)
Colour: Black

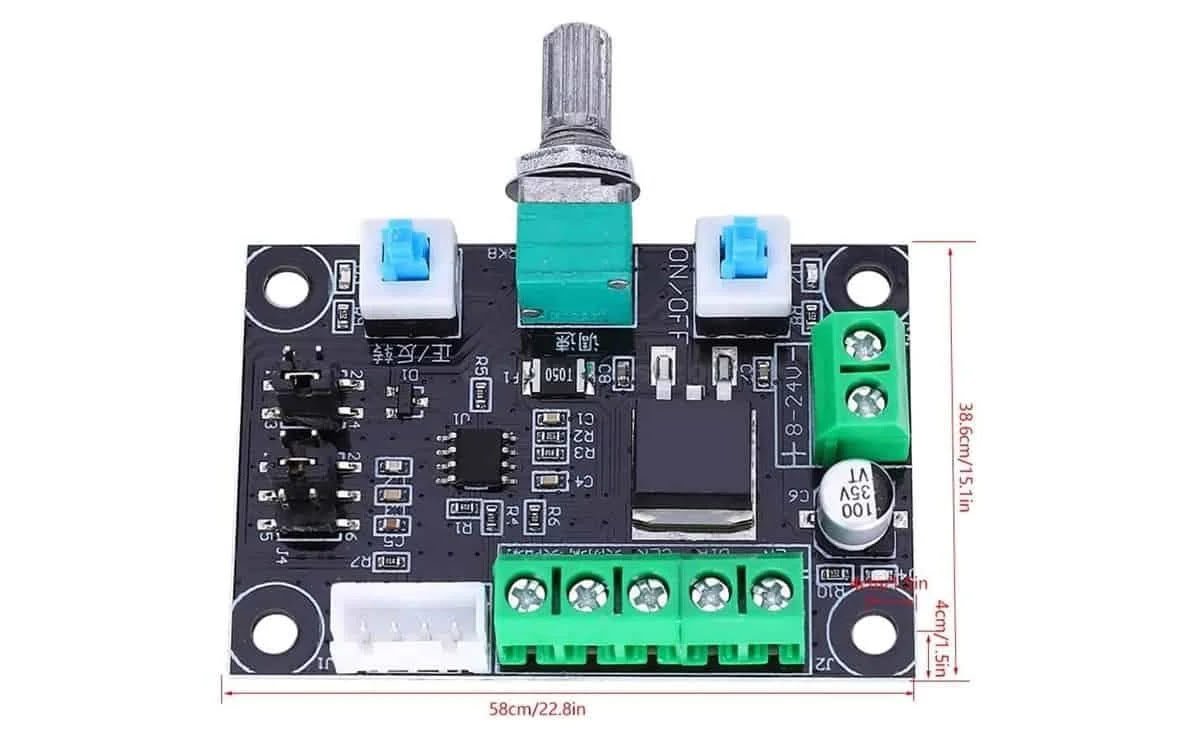

Dimensions: 58 × 39mm
Signal Type: PWM / Pulse
Frequency Range: High: 5.4k-160khz / Medium: 540-16.6khz / Low: 80-2.4khz
Direction: clockwise / counterclockwise
Stock: 6pieces
Delivery all over Pakistan.
Self-pick in Lahore CNC AutomationDelivery all over Pakistan
Features:

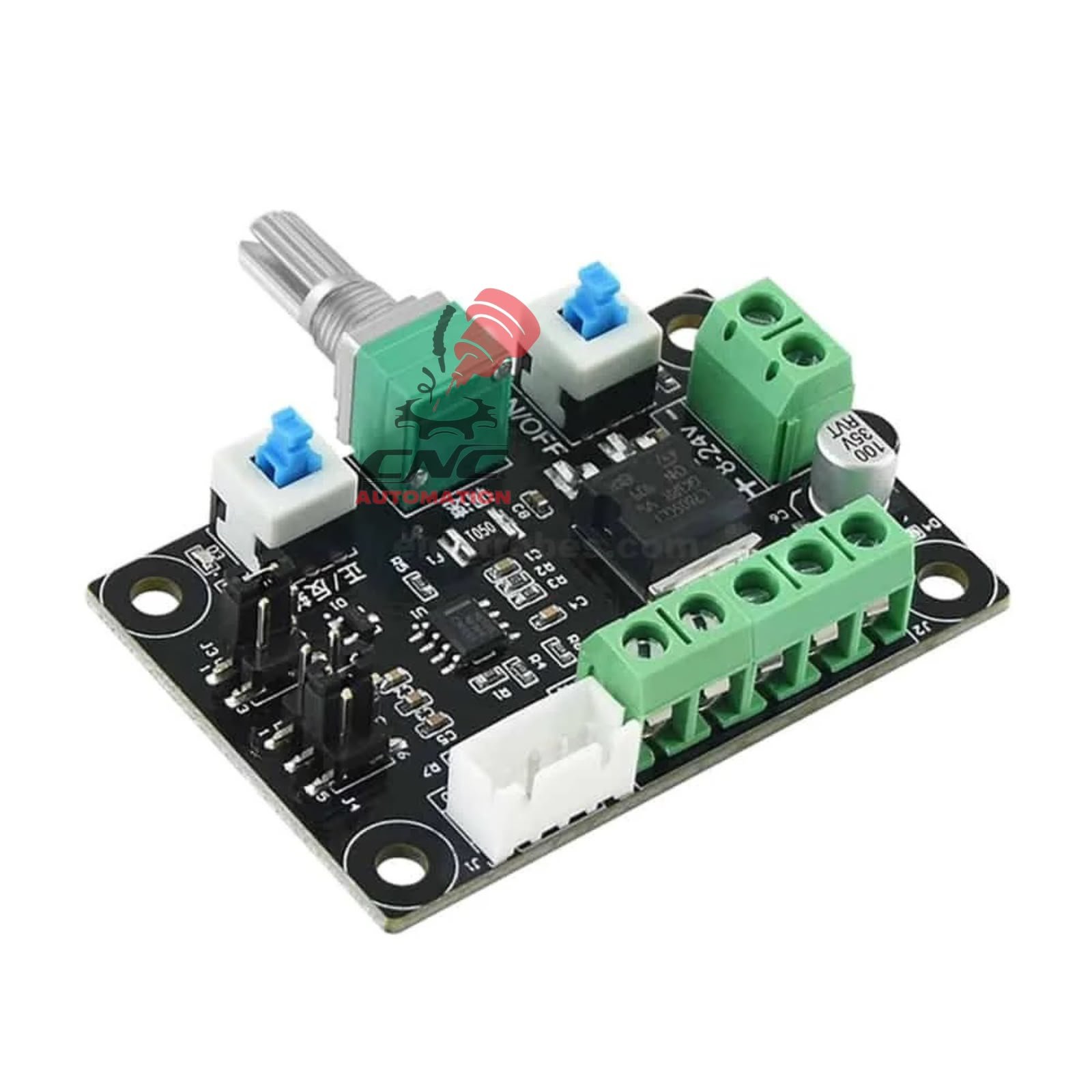

This module is a pulse generation module and supplies a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.
This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.(Only the controller is included.)

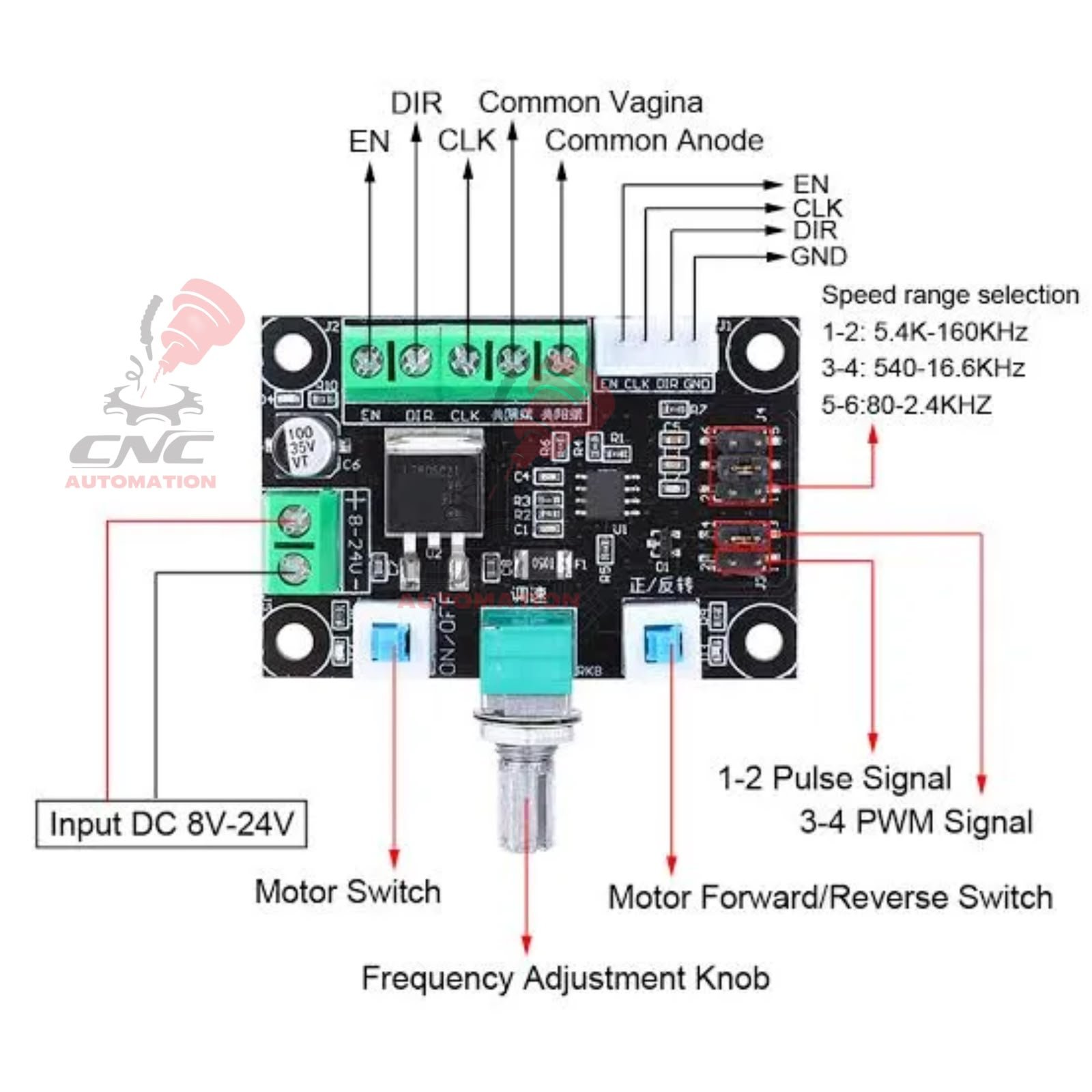

The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz, which can be with a jumper.
It can generate pulse signal and PWM signal, and it can be by jumper.
Frequency measurement: You can measure PUL and common cathode (or common anode) two ports.
